加强型无纺布
2024-08-03 19:56:55

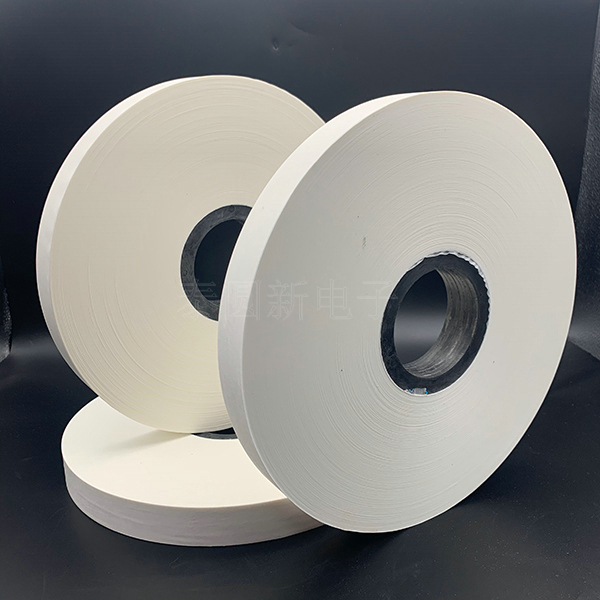

加强型复合无纺布 STRENGTHENED LIGHT NON-WOVEN FABRIC
该产品由无纺布和聚酯薄膜复合而成，又称无纺布聚酯带，与单一的无纺布相比，增强了绝缘性能和拉升强度，稳定性得到很大的改善，与单一的聚酯带相比，又增加了柔软度，更适合，矿用电缆，船用电缆，风能电缆等特殊电缆的使用。
The product is composed of non-woven fabric and polyester film, also known as non-woven fabric polyester belt. Compared with a single non-woven fabric, it enhances the insulation performance and pull-up strength, and greatly improves the stability. Compared with a single polyester belt, it also increases the softness, which is more suitable for the use of special cables such as mining cables, marine cables and wind energy cables.
技术指标TECHNICAL SPECIFICATION
| 规格 | 单位 | 加强型复合无纺布 | ||
| 厚度 | mm | 0.10 ±0.02 | 0.15 ±0.03 | 0.20 ± 0.03 |
| 克重 | g/m2 | 60±10 | 80±10 | 140±10 |
| 抗张强度 | N/cm | ≧40 | ≧50 | ≧60 |
| 断裂伸长率 | % | ≧30 | ≧30 | ≧30 |
| 瞬间稳定性 | °C | 230 | 230 | 230 |
| 长期稳定性 | °C | 90 | 90 | 90 |
| 吸水速度 | Mm/min | ≤0.1 | ≤0.1 | ≤0.1 |
| 含水量 | % | ≤5 | ≤5 | ≤5 |
