单面铝箔麦拉
2024-08-03 19:56:55

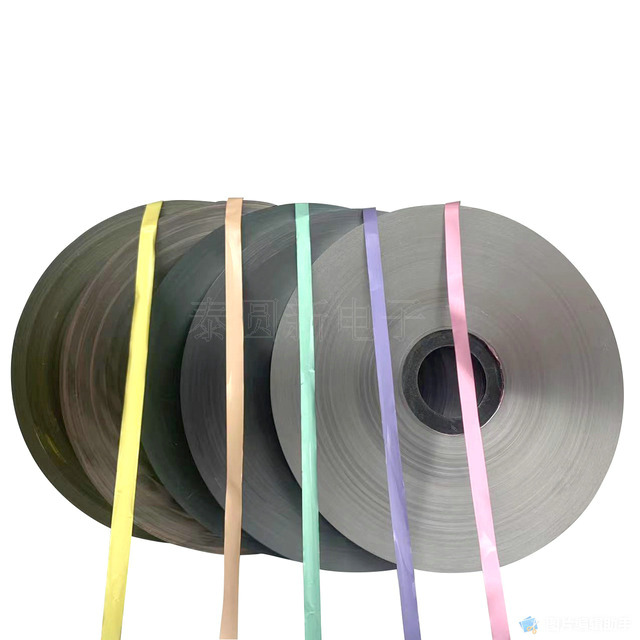

单面铝箔麦拉带 Single-side aluminum foil mylar tape
单面铝箔麦拉带由铝箔与聚酯薄膜复合而成。作为多导体控制线材的干扰屏蔽,铝箔麦拉带已广泛用于通信电缆、数据电缆、光缆、信号电缆、控制电缆等领域。
Single-side aluminum foil mylar tape is composed of aluminum foil and polyester film. As interference shielding of multi-conductor control wires, aluminum foil mylar tape has been widely used in communication cables, data cables, optical cables, signal cables, control cables and other fields.
技术指标TECHNICAL SPECIFICATION
| 厚度Thickness(mm) | 结构Compositions | 比重Basis weight(g/m2) | 密度Yield( m2/kg) | 断裂伸长率Elongation(%) | 拉伸强度Tensile strength(Mpa) |
| 0.025±10% | AL7+PET15 | 42±10% | 23.3 | 30↑ | 60↑ |
| 0.030±10% | AL9+PET19 | 52±10% | 19.0 | 30↑ | 60↑ |
| 0.035±10% | AL9+PET23 | 59±10% | 16.8 | 30↑ | 60↑ |
| 0.040±10% | AL12+PET25 | 70±10% | 14.2 | 30↑ | 60↑ |
| 0.050±10% | AL20+PET25 | 92±10% | 10.9 | 30↑ | 60↑ |
| 0.060±10% | AL25+PET30 | 112±10% | 8.9 | 30↑ | 60↑ |
| 0.040±10% | AL25+PET12 | 87±10% | 11.5 | 10↑ | 60↑ |
| 0.055±10% | AL40+PET12 | 127±10% | 7.8 | 10↑ | 60↑ |
| 0.070±10% | AL45+PET23 | 156±10% | 6.4 | 10↑ | 60↑ |
| 注：宽度从2mm起按客户要求生产 NOTE：widths are available from 2mm and can be customized according to customer is requirement | |||||
顔色：自然色(银色)，蓝色，红色，铜色，金色，粉色，绿色等
Colors: natural color (silver), blue, red, copper, gold, pink, green and so on.
