铜箔麦拉
2024-08-03 19:56:55

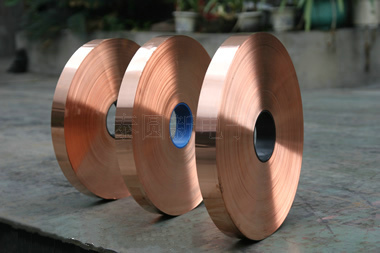

铜塑复合带Copper plastic composite tape
铜箔麦拉带由高品质压延铜箔、电子聚酯膜通过独特胶水复合而成。具有更高的屏蔽绝缘性能。主要应用于要求更高的同轴电缆、数据电缆、信号电缆、控制电缆、电子设备电缆及其他通讯电缆。
Copper foil Mylar tape is composed of high-quality rolled copper foil and electronic polyester film through a unique adhesive formula.
技术指标TECHNICAL SPECIFICATION
| 厚度Thickness(mm) | 组成Constructure | 比重weight(g/m2) | 密度Yield(m2/kg) | 抗张强度Tensile Strength(N/mm2) | 伸长率Elongation at Break(%)(m2/kg) |
| 0.030 | CU15+PET12 | 153 | 6.5 | ≥100 | ≥8 |
| 0.033 | CU18+PET12 | 180 | 5.5 | ||
| 0.050 | CU18+PET30 | 205 | 4.8 | ||
| 0.10 | CU50+PET50 | 518 | 1.9 |
